Mobula7 1S HD: Tiny Drone, Huge Adventures! 1080P Fun in the Palm of Your Hand.
Alright, buckle up buttercup, because we're talking about somethin' special. Forget everything you think you know, ditch the beige, and prepare for a splash of vibrant awesome. This ain't just a thing, it's a whole vibe, a secret handshake between you and pure unadulterated cool. Wanna be the envy of everyone you know? Then snag this bad boy. Trust me, your life is about to get a whole lot more interesting. What are you waiting for? Let's get this party started!

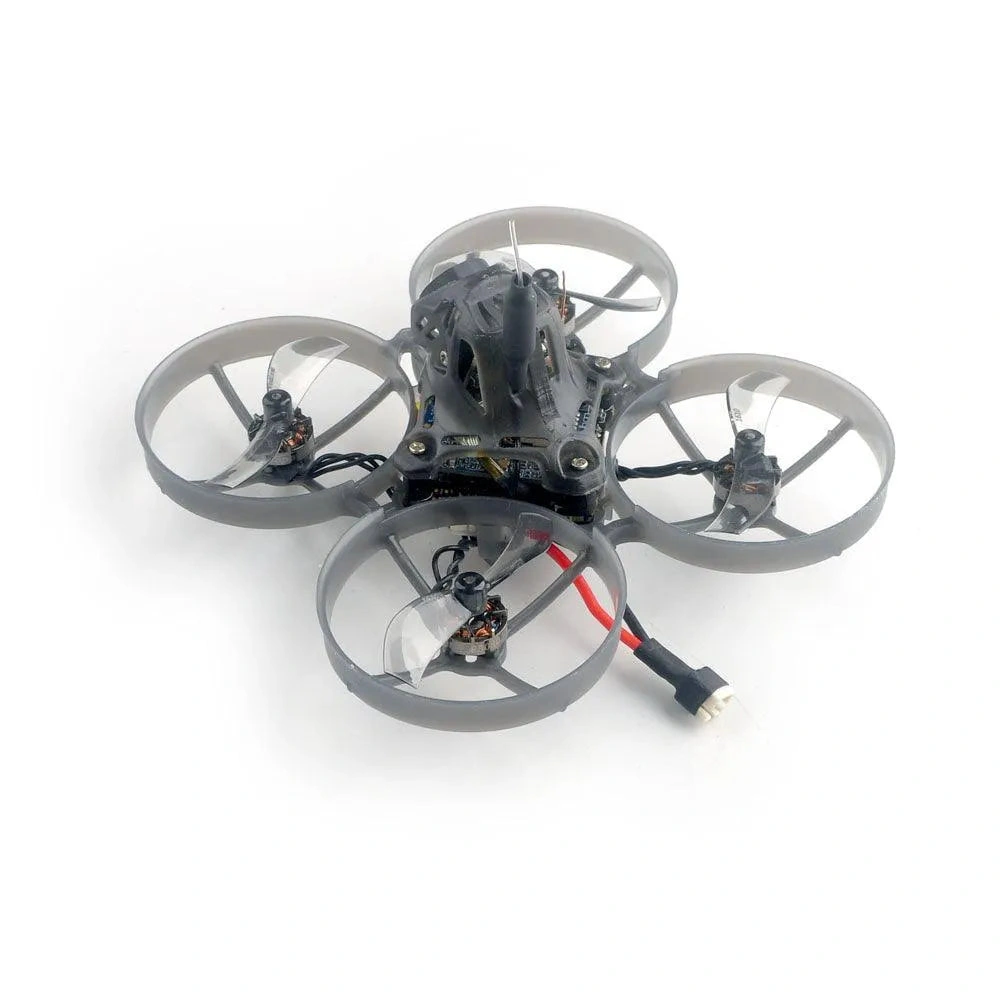

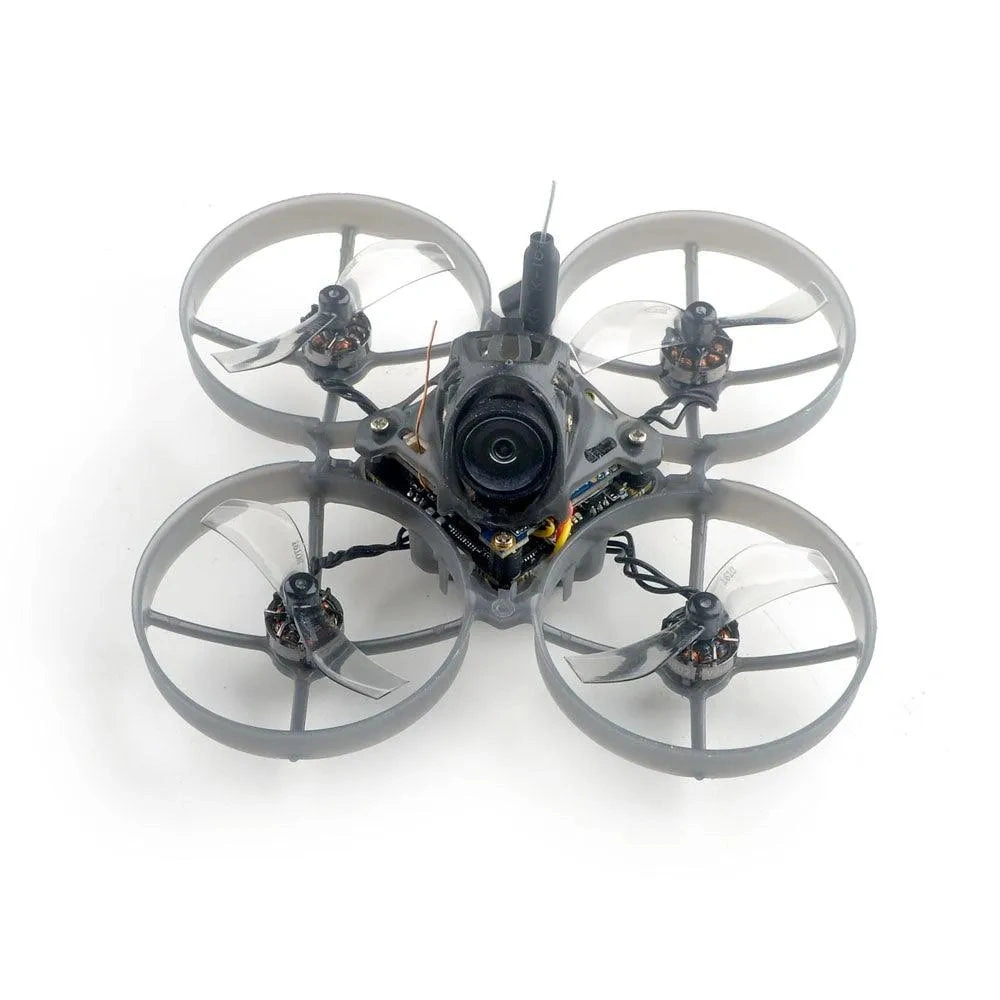

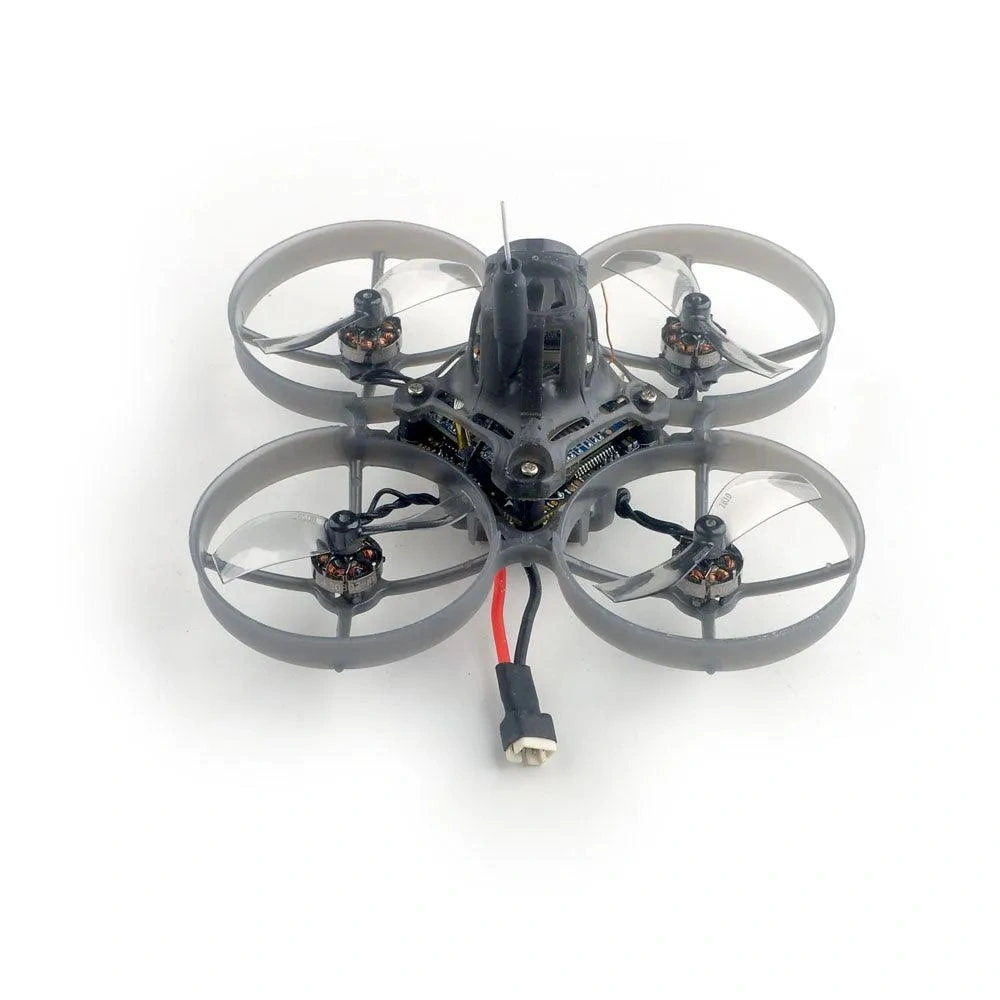

Mobula7 1S HD version is a light and efficiency 75mm brushless whoop which provide 1080P HD video record function. A highly integrated AIO Flight Controller, supports ESC with a maximum current output of 12A. We added blackbox for this 1s 75mm HD recorder whoop. Now it could support gyroflow. Although the external blackbox is not install perfectly and insert SD card is not friendly to most of the people, however we still think it’s really excited for this small whoop could record a video with gyroflow steady and keep safe flying.
Features:
X12 5-IN-1 AIO flight controller
VTX Power up to 400mw
ELRS V2.0 Support
NEW RS0802 KV20000 motors
1080P HD Video record
Blackbox Ready support GYROFLOW
Smooth and powerful
Compatible for 1S Lipo/LIHV
Recommend 1S 450mah/550mah/650mah batteries (Not include)
Lipo Battery：(not included)
Recommend battery:
520mAh 1S 3.8V LiPo Battery
Specifications:
Brand Name: Happymodel
Item Name: Mobula7 1S HD 75mm Micro FPV whoop drone
Wheelbase: 75mm
Size: 99mm*99mm*45.5mm
Weight: 33g
Receiver option:
SPI 2.4GHz ELRS V2.0
SPI Frsky D8/D16
Spare parts specifications:

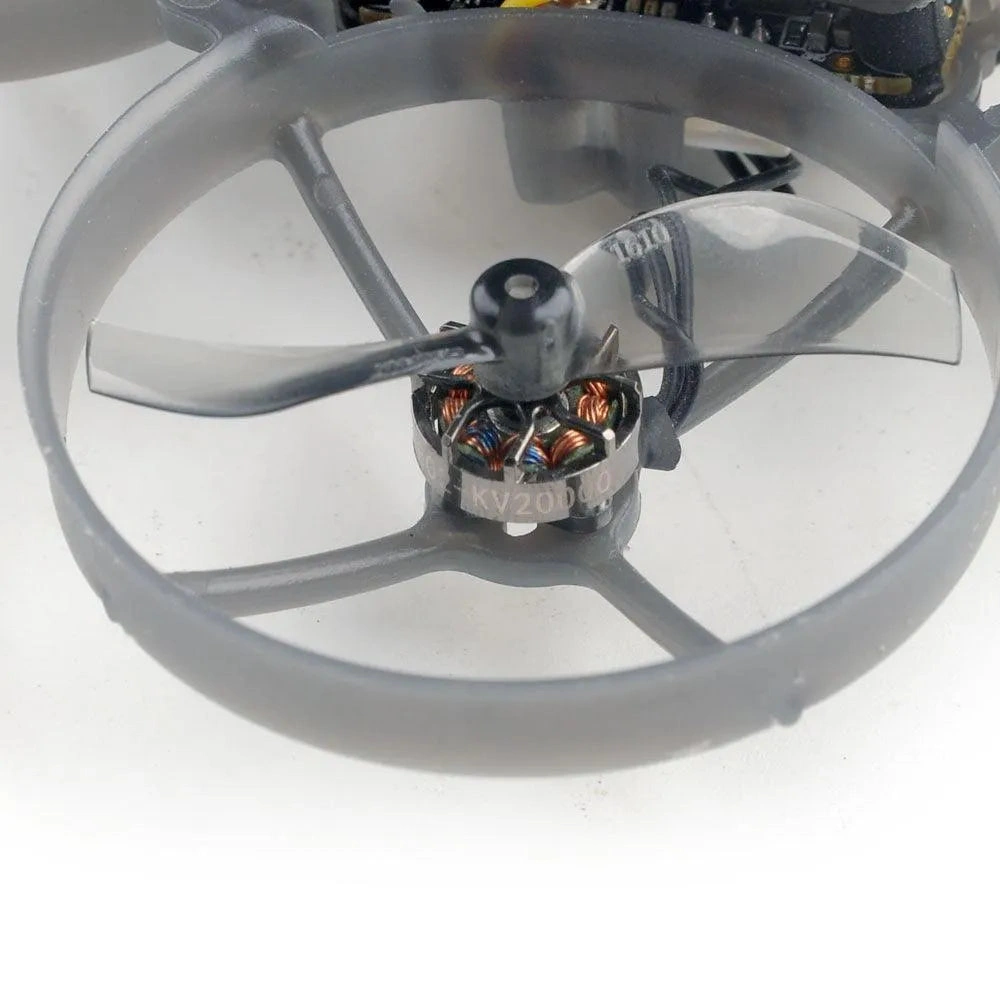

Motor
Mode: RS0802 KV20000
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ10.5mm*13.5mm
Weight(g):2.0g
No.of Cells(Lipo):1S only
Propellers
Weight:0.24g
Material:PC
Pitch:1 inch
Props Dia:40mm
Center Thickness:5mm
Center Hole Dia:1.5mm
If you want to buy extra propeller,please click here
Flight controller
X12 ELRS V2.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16
Built-in voltage detection
Built-in current sensor
Onboard 4in1 ESC
Power supply: 1S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300
Support Bluejay firmware
When use Blujay firmware with 48khz, should set startup power to 1100/1200
Onboard SPI ExpressLRS 2.4GHz Receiver
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : Enameled copper wire length 30mm
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
Onboard Frsky SPI D8/D16 receiver Version
SPI BUS receiver Frsky D8 D16 compatible
Could working on FRSKY D8/D16/D16 LBT/REDPINE/SFHSS protocol
Channels: 8ch or 16CH
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
Failsafe support
Onboard 5.8g OPENVTX
Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)

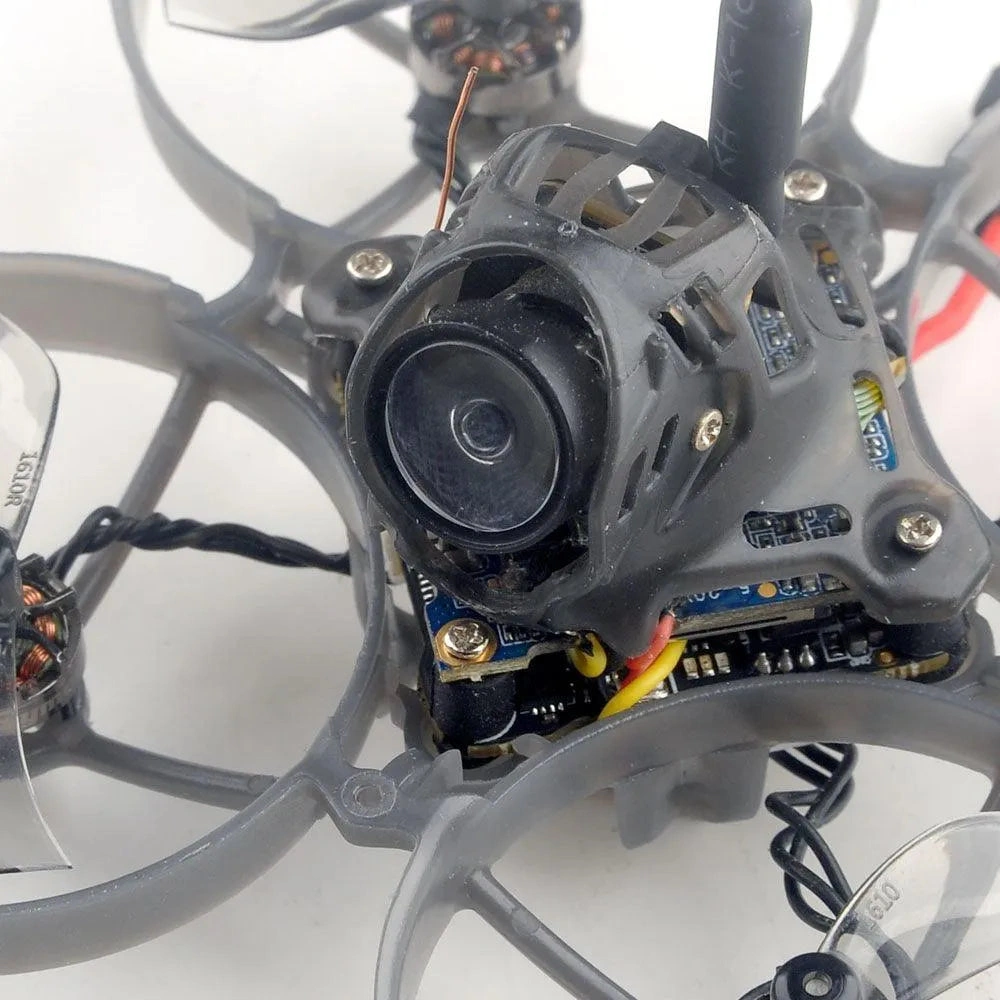

Runcam Split3-Lite
Model: RunCam Split3-Lite
Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)
Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps
Video File Format: MOV
Image Resolution:2 MP
TV Mode: NTSC (720*480)/PAL (720*576) Switchable
Interface: JST 1.25mm / UART and SH 1.0mm
Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)
Hole Distance of Installation: 25.5*25.5mm
PCB Size: 29*29mm
Lens Module Size: 14*14mm
Lens Specs: M9
Power Input: DC 5-20V(Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.)
Working Current: 450mA @5V
External Blackbox and voltage booster module
Size:18*15.5*4.5
With Built-in Voltage booster module
Weight:1.5gram
SD Card support max to 32GB
SD Card need to use FAT32 Format
Notes: Need to careful to insert the TF SD Card , and don’t pull it out while install the battery.
Package Included:
1*Mobula7 1S 75mm whoop Drone Frame (Mobula7 v4 frame)
Option1: X12 ELRS V2.0 flight controller built-in SPI ELRS 2.4G receiver
Option2: X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver
1*External Blackbox Module support gyroflow
4*RS0802 KV20000 brushless motor
1*Gemfan 1610-2 bi-blade propellers(4cw+4ccw)
1*Runcam Split3-Lite Camera+1080P DVR
1*1S series balance charging board
1*Propeller disassemble tool
