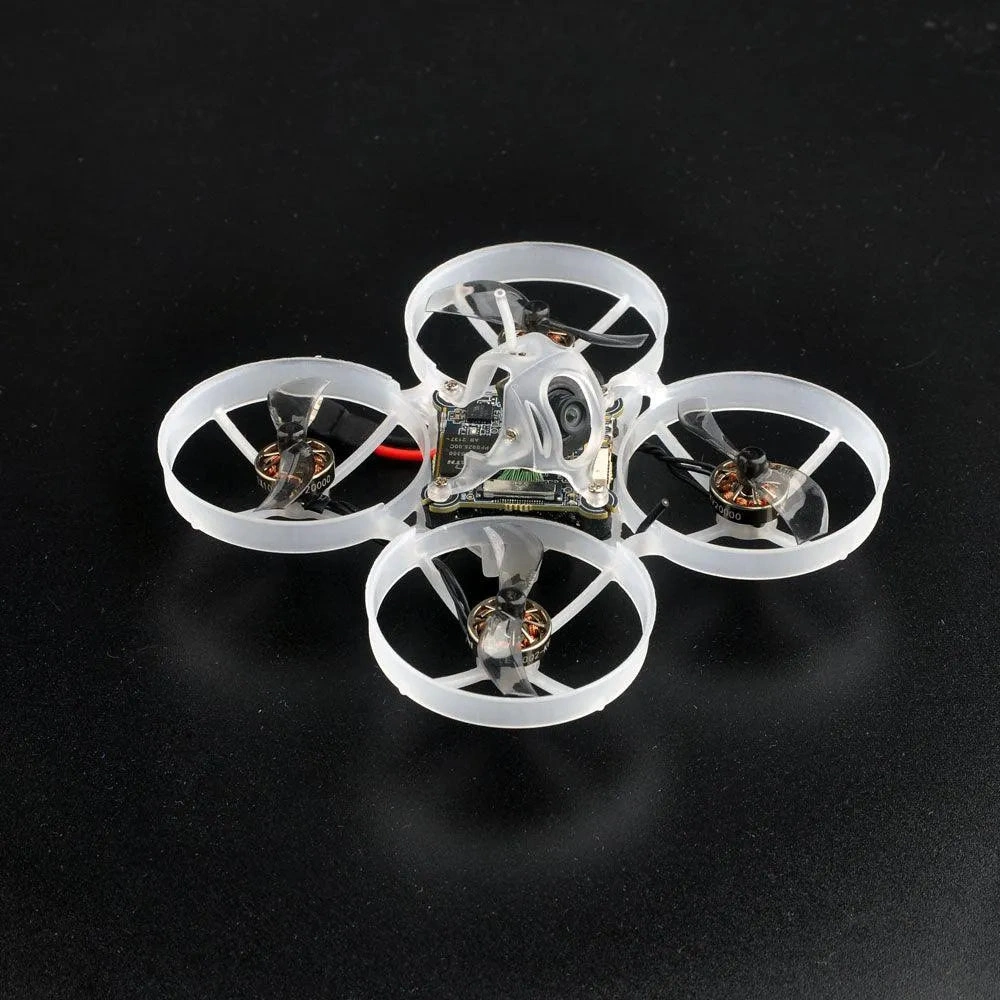

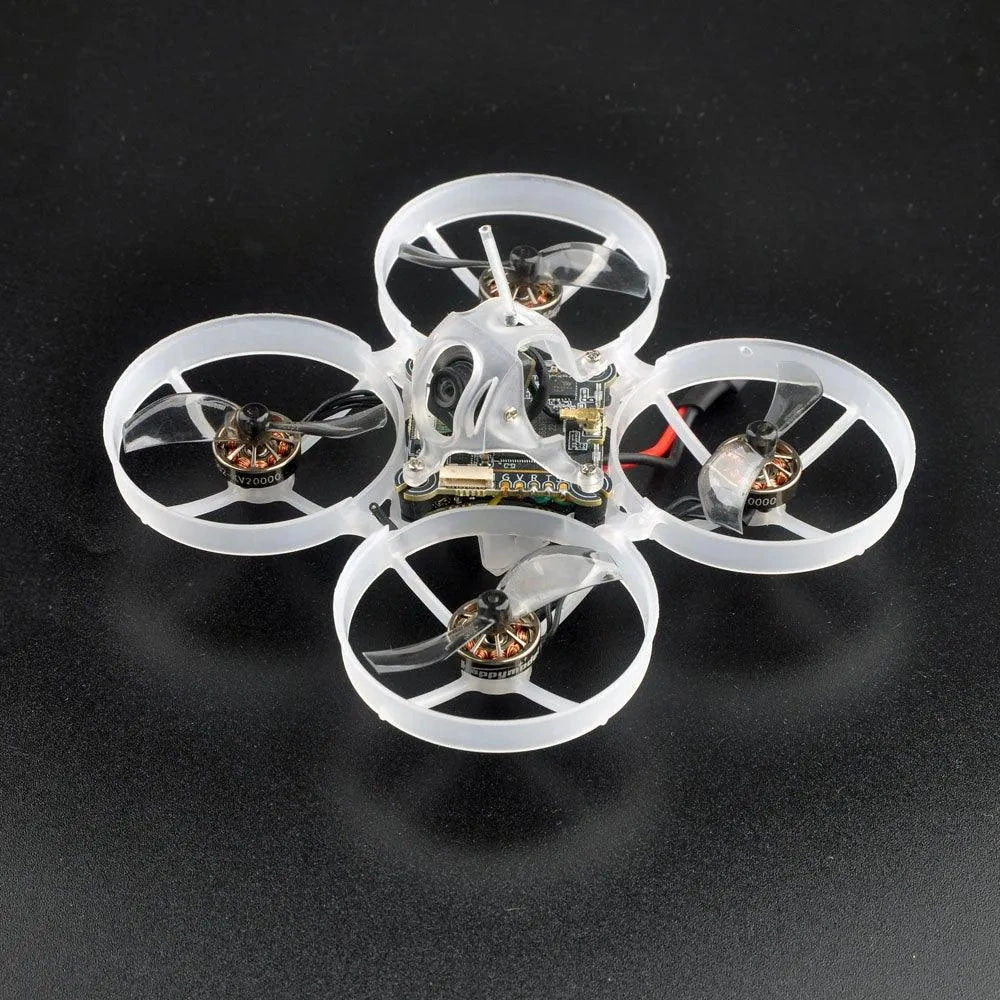

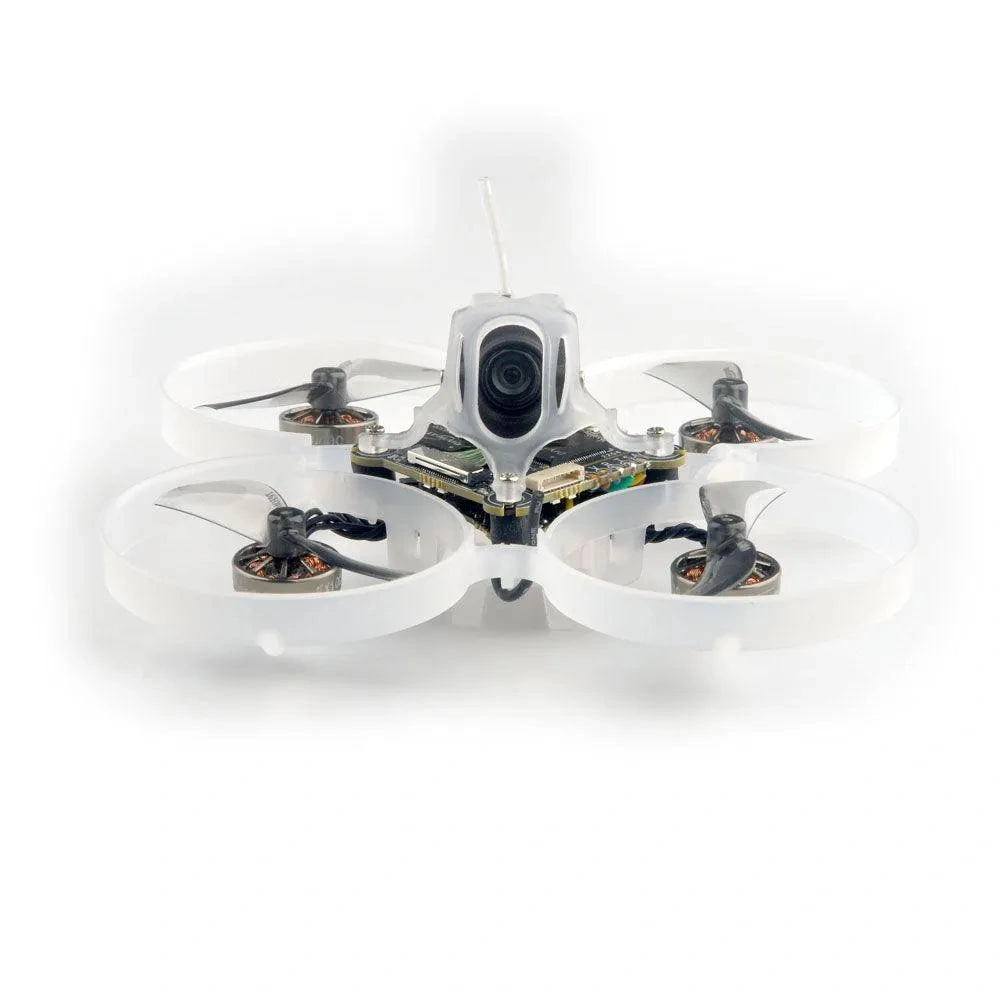

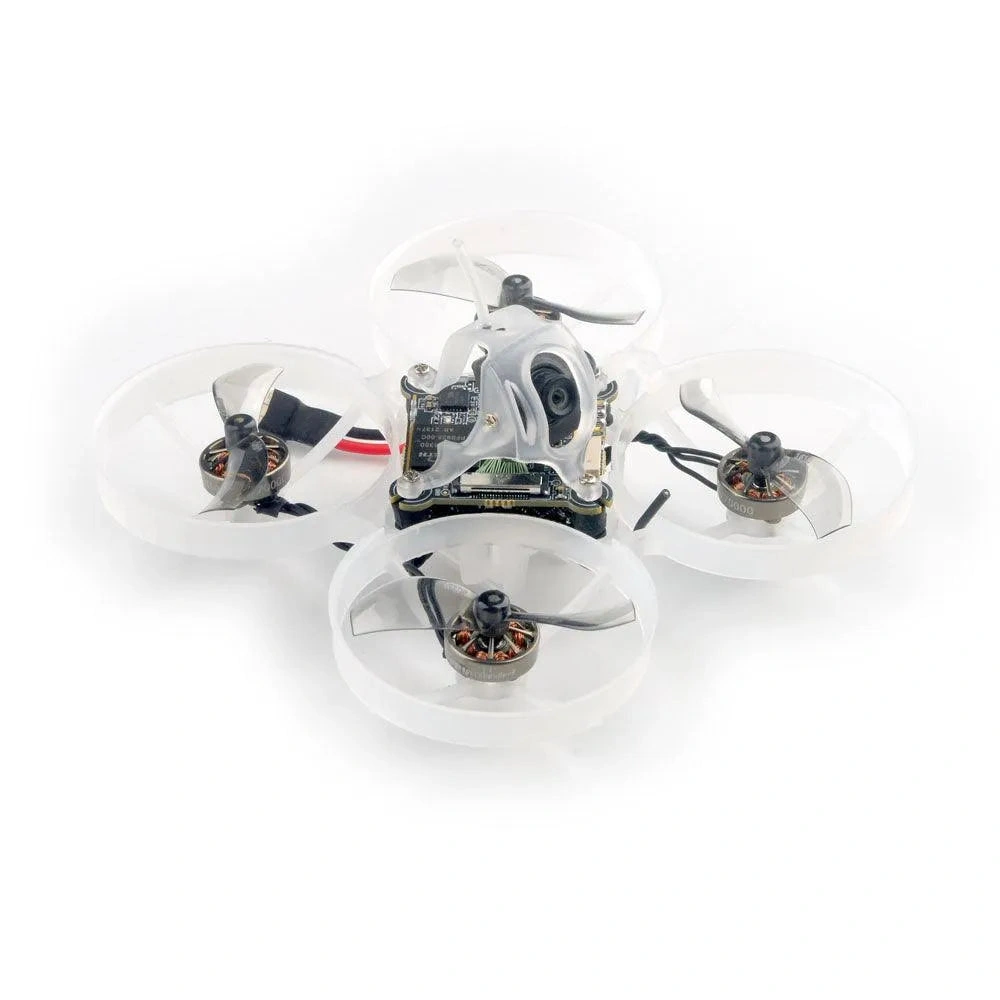

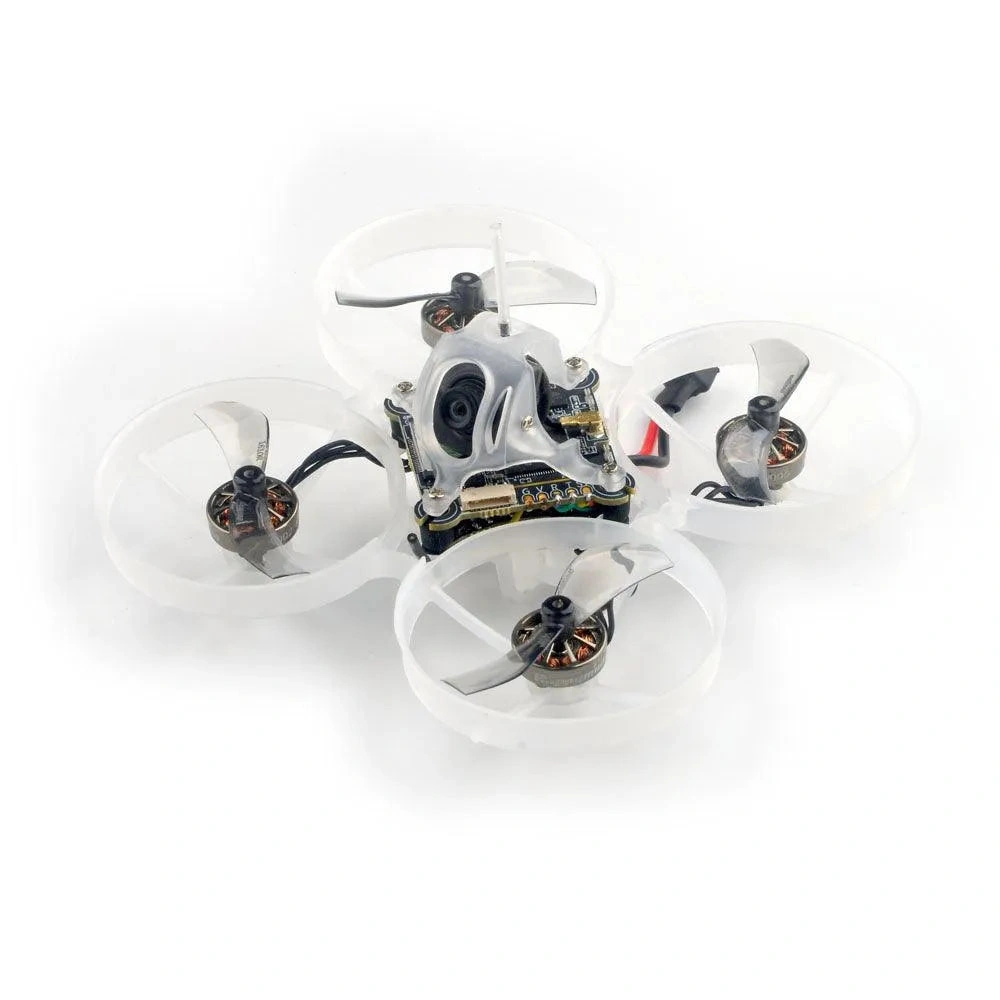

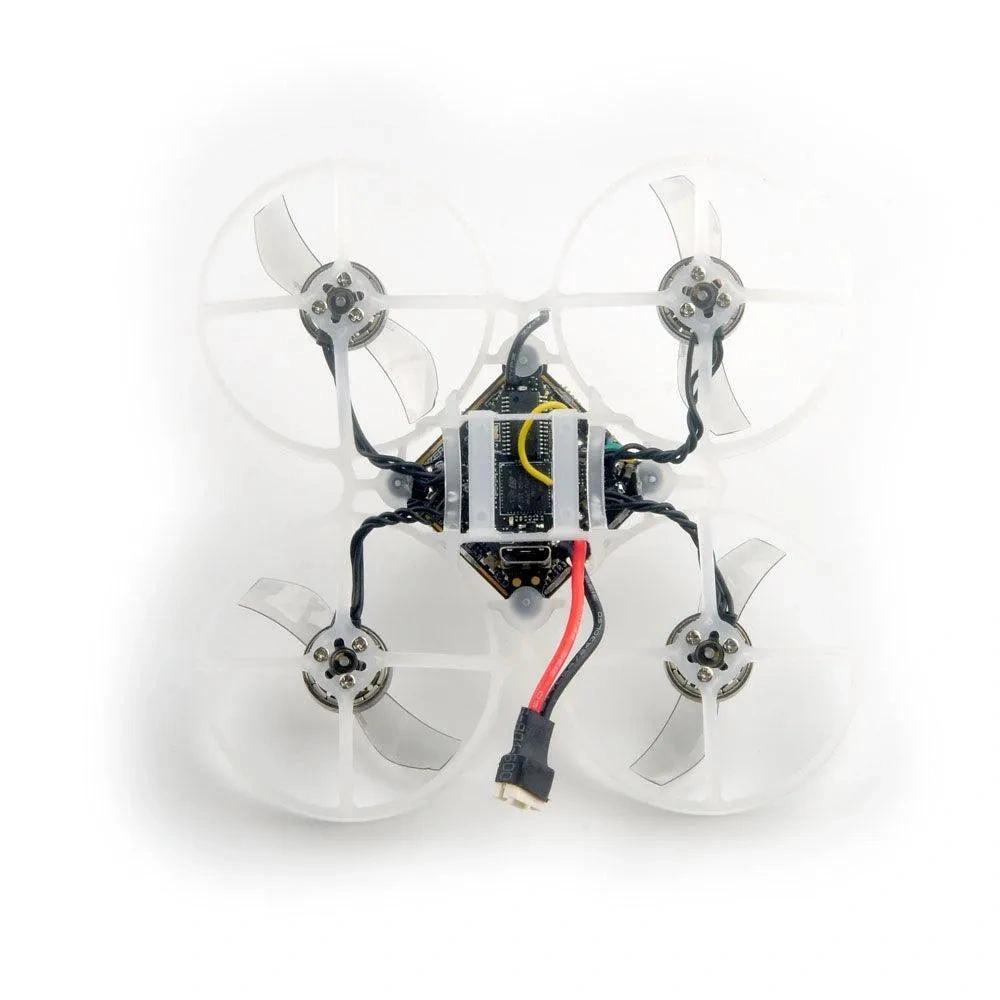

Happymodel Moblite7 HDZERO: Lightweight, High-Performance Drone - Capture Stunning HD Video!
Unleash your inner wanderer with this stunning piece – a curated blend of rustic charm and modern allure. Crafted with meticulous detail, it’s not just an item; it’s a story waiting to unfold. Let its unique design spark conversation and elevate your space with effortless elegance. Own a little piece of extraordinary.
more
Specifications:
Brand Name: Happymodel
Model: Moblite7 HDZERO
Frame wheelbase: 75mm
Weight: 29.5 gram without battery
Size: 98mm*98mm*50mm
Receiver option:
SPI ELRS 2.4GHz
SPI FRSKY 2.4GHz
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: PH2.0
Flight controller
SuperbeeF4 Lite ELRS/FRSKY
SPI ELRS version Firmware target: CrazybeeF4SX1280
SPI FRSKY version Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in SPI Frsky/ExpressLRS receiver
Built-in 5V 1A BEC
Built-in voltage detection
Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
Currents: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT150/DSHOT300/DSHOT600
Onboard SPI ExpressLRS 2.4GHz Receiver
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Could bind with ELRS V2.0 firmware TX module
Onboard Frsky SPI D8 /D16 2.4GHz Receiver
SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt)
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol
Motor
Model: EX1002 20000KV
Configu-ration:9N12P
Stator Diameter:10mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm
Weight(g):2.5g
No.of Cells(Lipo):1S only
Propeller Gemfan 1610-2 Bi-blades
Weight:0.24g
Material: PC
Pitch:1 inchProps Dia:40mm
Center Hole Dia:1.5mm
HDZero Nano Lite Camera
14x16x11 mm
1.5gram
0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
Excellent low light performance
Fov:
4:3: D:130° H:108° v:84°
16:9:D:122° H:108° V:65°
HDZero Whoop Lite VTX
1S Input
25mW/200mW RF Output-SmartAudio Support
25.5×25.5 M2 Soft Mounting- Antenna Retention
Removable Shielding Box- 32.5×32.5mm(29x29mm inner)
4.5grams/4mm Thickness (without shielding)
Package Included:
1X Mobula7 v4 75mm frame +Canopy
SPI Receiver Option1: SuperbeeF4 Lite FC built-in ExpressLRS SPI RX
SPI Receiver Option2: SuperbeeF4 Lite FC built-in Frsky SPI RX
4X EX1002 KV20000 Unibell brushless motor
1X Gemfan 1610-2 bi-blades propeller(4cw+4ccw)
1X HDZero Nano Lite Camera
1X HDZero Whoop Lite VTX
1X Spare Canopy
1X Propeller disassemble tool
1X Screw driver
