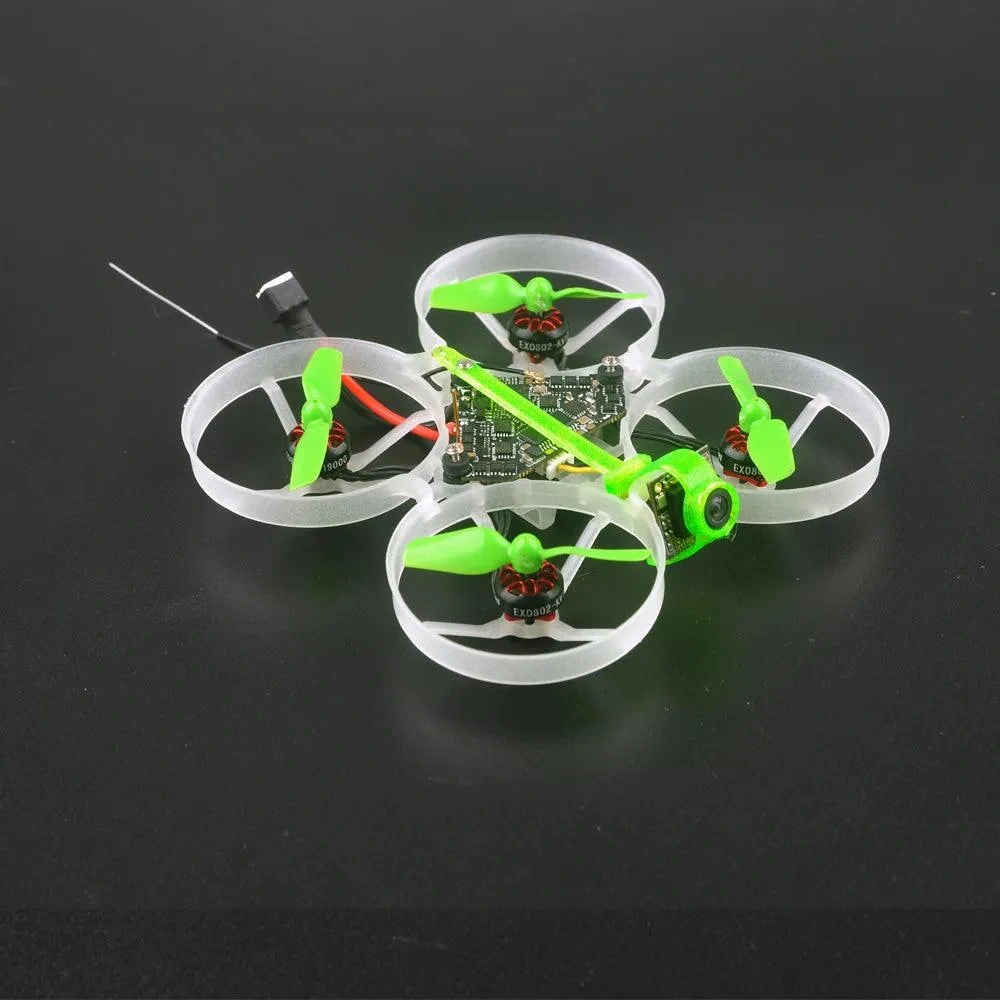

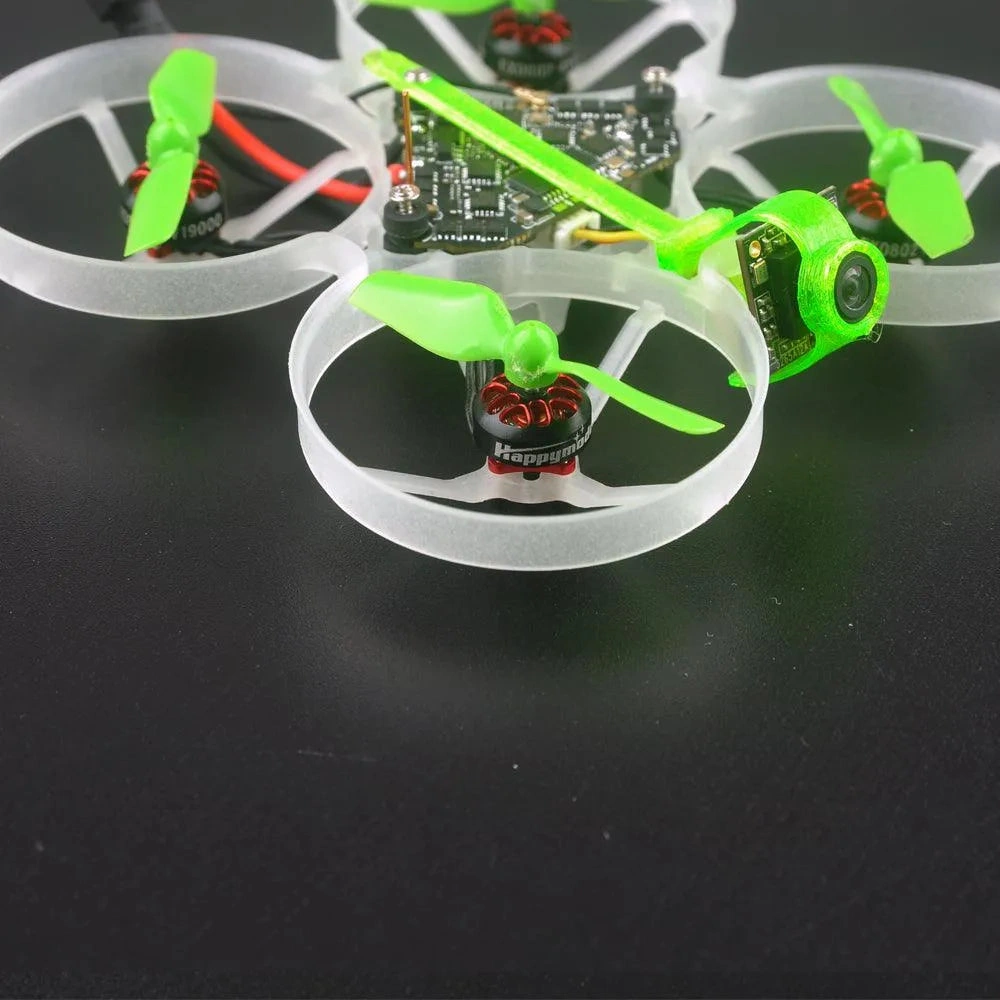

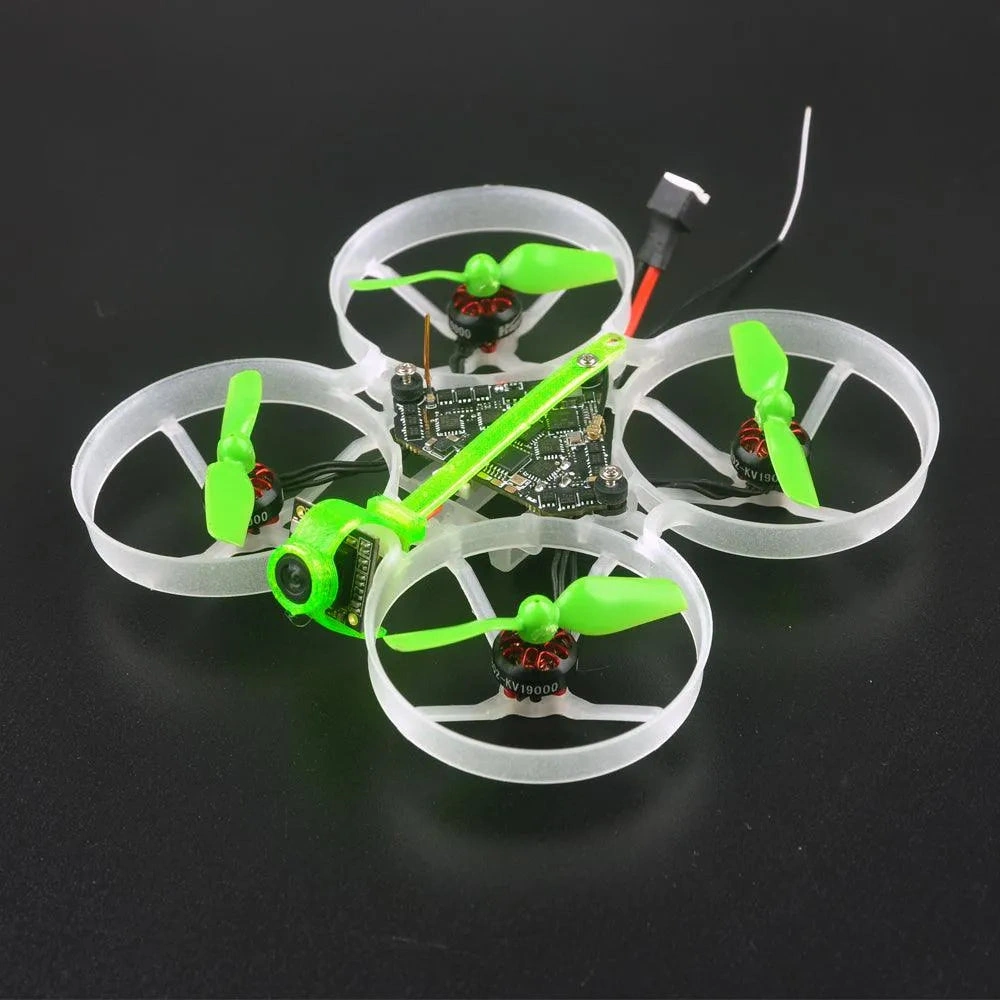

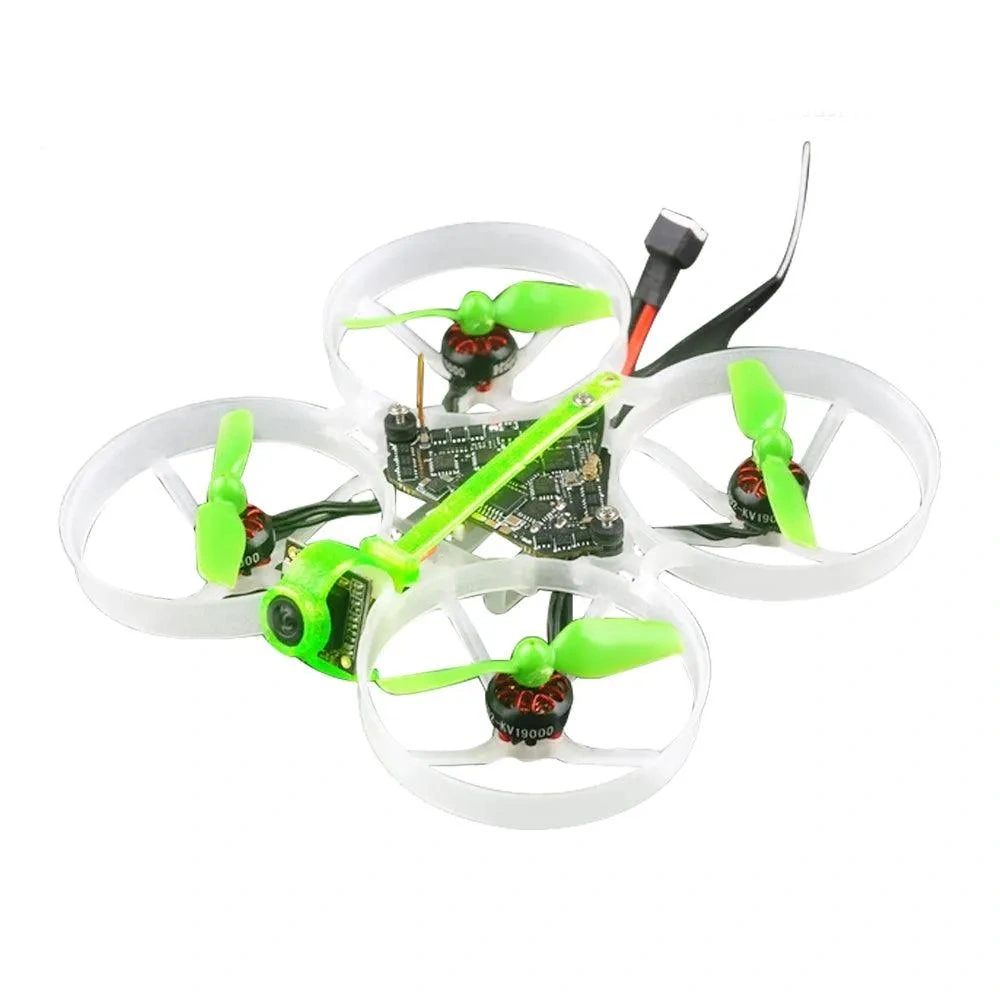

Happymodel Moblite7 1S 75mm Ultra-light Brushless Whoop FPV Racing Drone
Specifications:
Brand Name: Happymodel
Item Name: Moblite7 1S 75mm ultra light brushless whoop
Wheelbase: 75mm
Size: 97mm*97mm*25mm

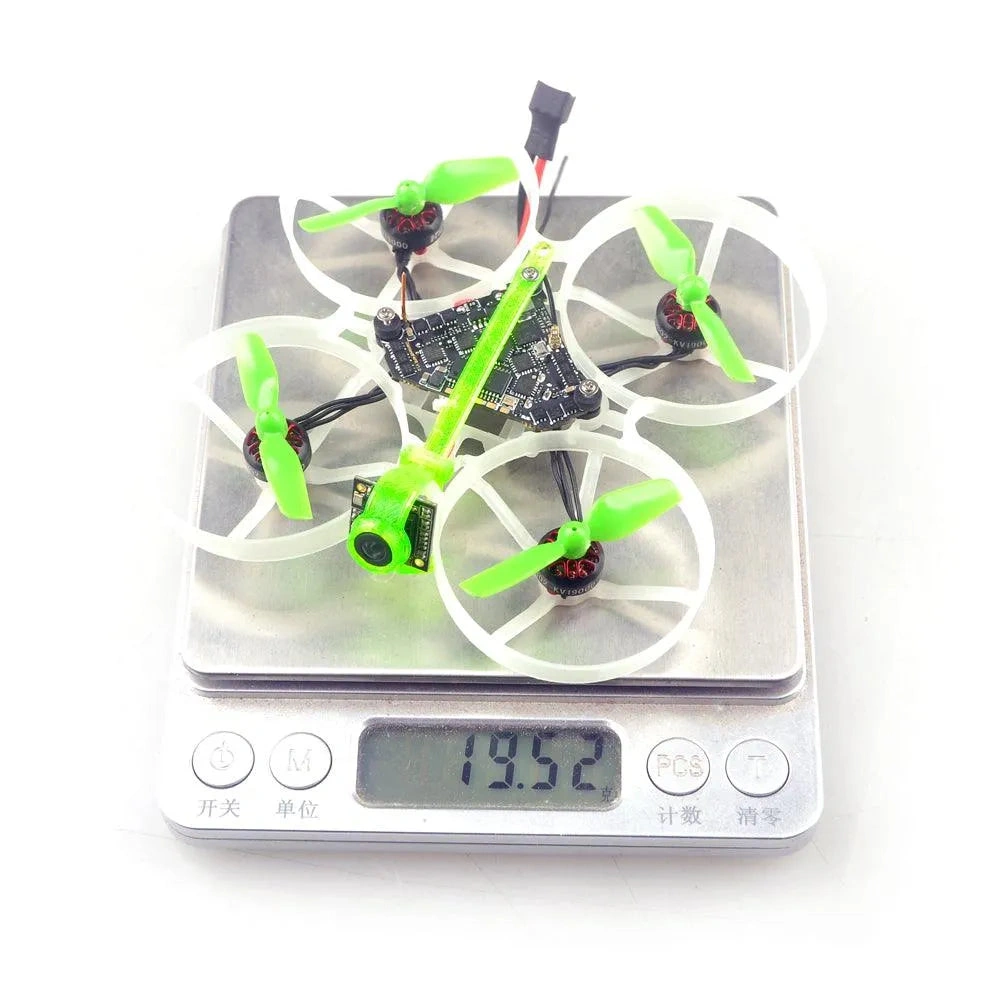

Weight: 19.5g (without battery)
Weight:36g(with Original 1s 650mah Lipo battery )
Features:
The lightest 1s 75mm brushless whoop
Powerful and efficiency
The lightest 1s AIO 5IN1 F4 flight controller
New Unibell EX0802 brushless motors
Low profile Canopy design
VTX power switchable 25mw~200mw
Spare parts specifications:
Motor
Model: EX 0802 19000KV
Configuration:9N12P
Stator Diameter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.7g
No.of Cells(Lipo):1S only
Flight controller
(Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky receiver
Built-in 5V 1A BEC
Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_50_REV16_8.HEX
Default protocol: DSHOT600
Onboard Frsky SPI D8 receiver Version
SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m
Onboard 5.8g VTX
Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels(include Race band)
Smartaudio ready
Runcam Nano3
Model: RunCam Nano 3
Image Sensor: 1/3' CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: [email protected]
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V [email protected]
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm
Lipo Battery
Capacity:650mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 60mmx18mmx8mm
Weight: 16g
Connector: PH2.0
Package included:
75mm Frame*1
DiamondF4 FR built-in SPI Frsky receiver*1
EX0802 KV19000 Unibell brushless motor*4
HQPROP 40MMX2 propeller(4cw+4ccw)*1
Runcam Nano3*1
Built-in 5.8G 40ch 25mw-200mw VTX*1
1s 650mah Lipo battery*2
Propeller disassemble tool*1
Screwdriver*1

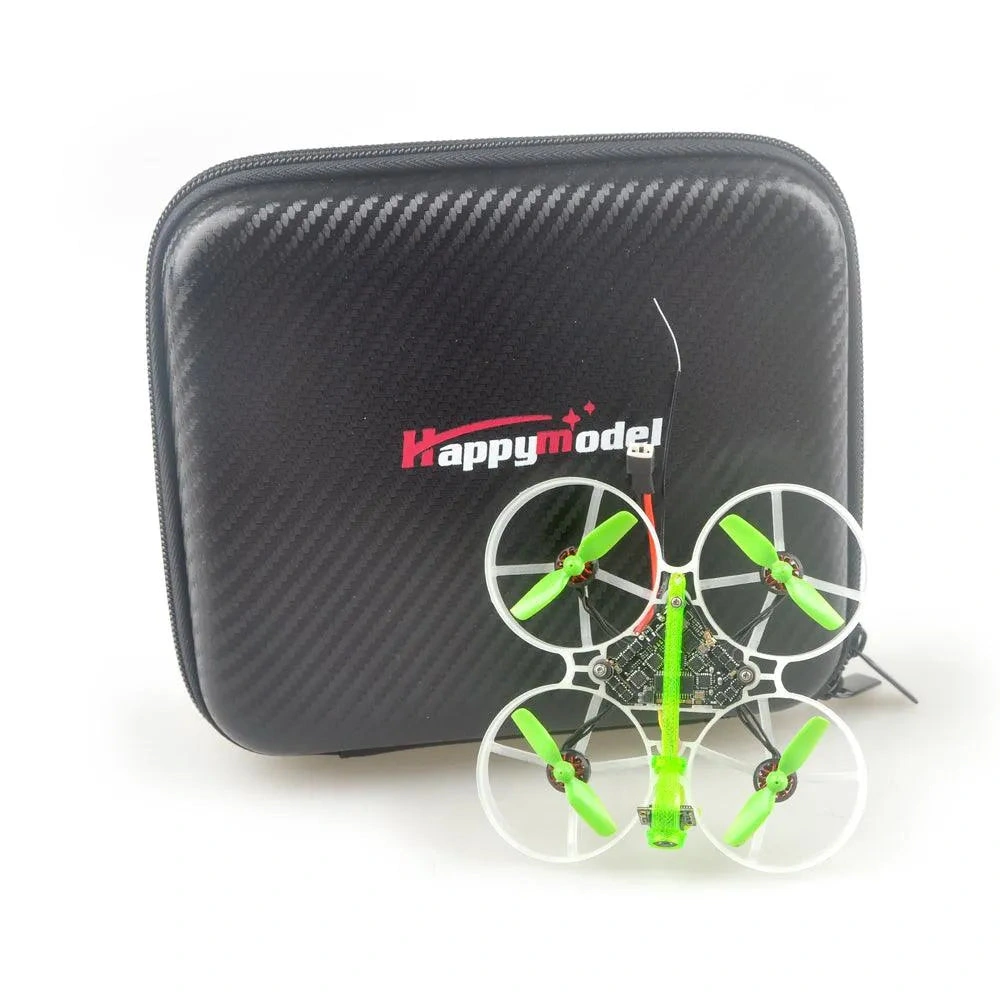

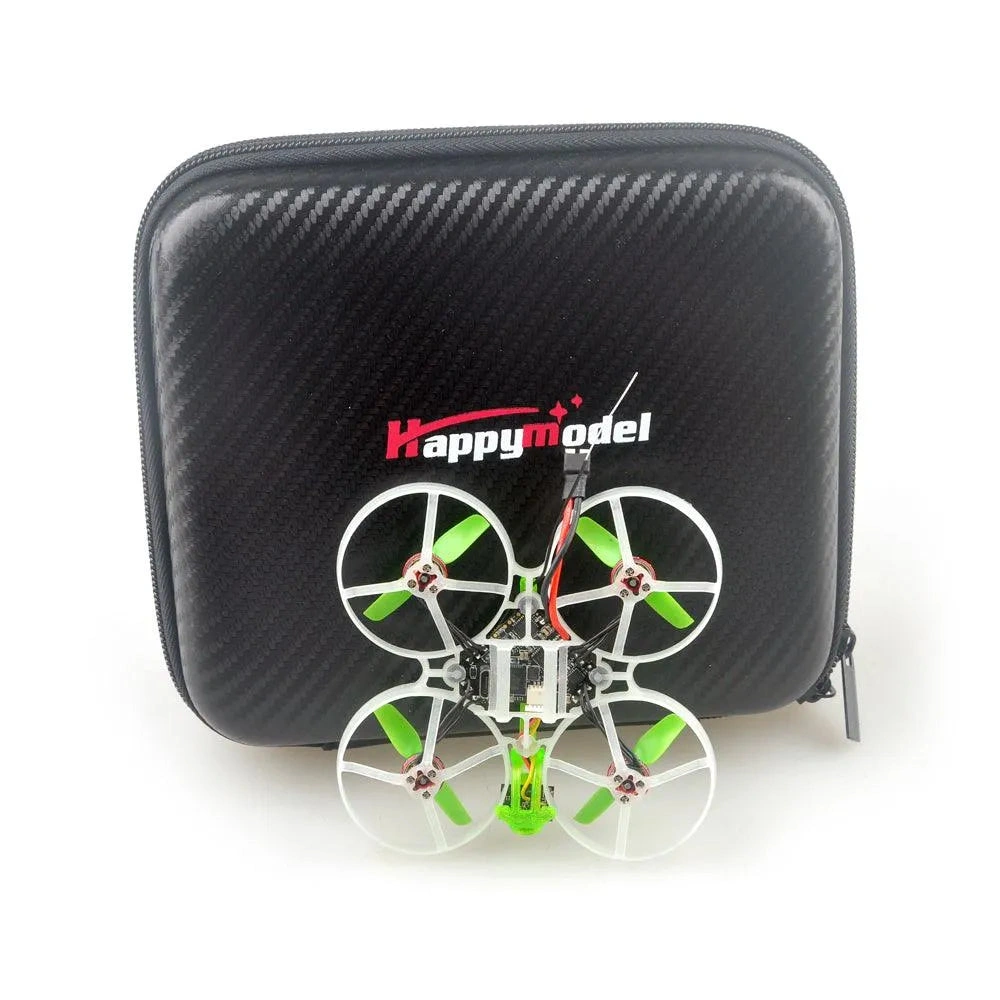

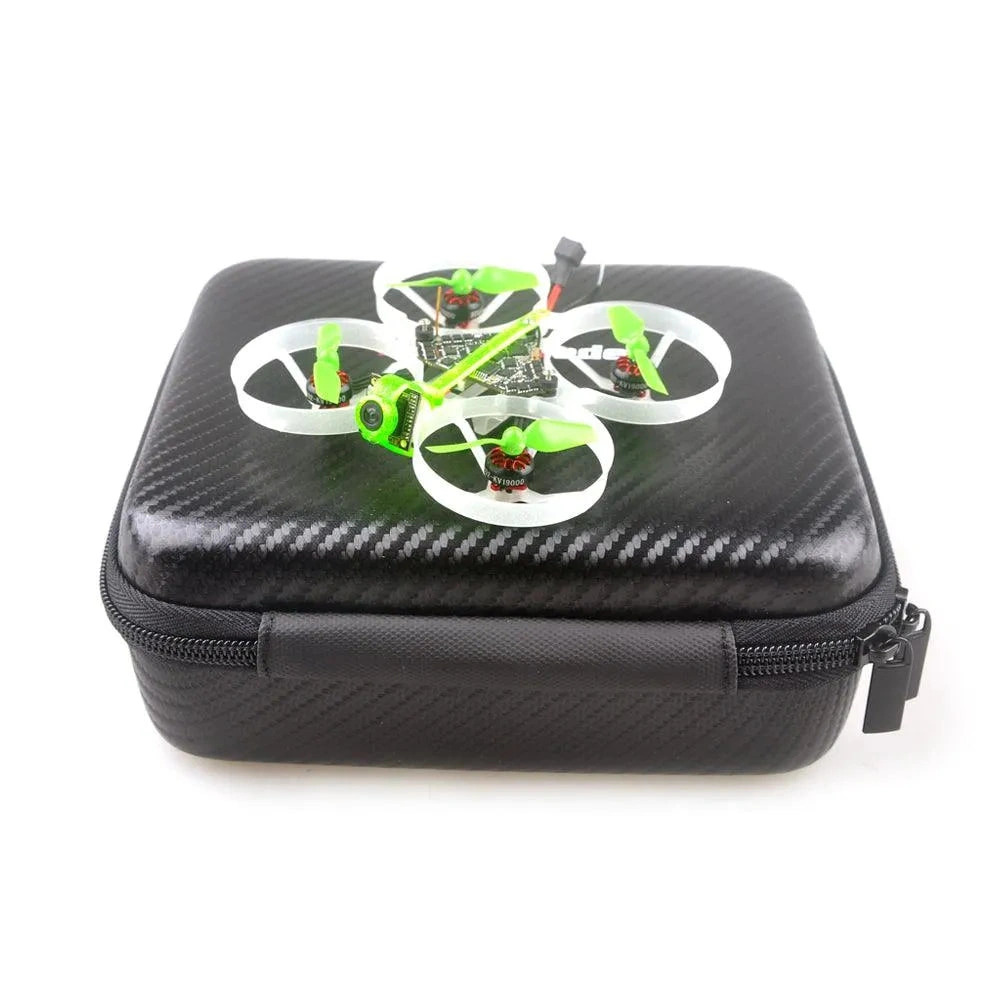

Happymodel Carry case*1
