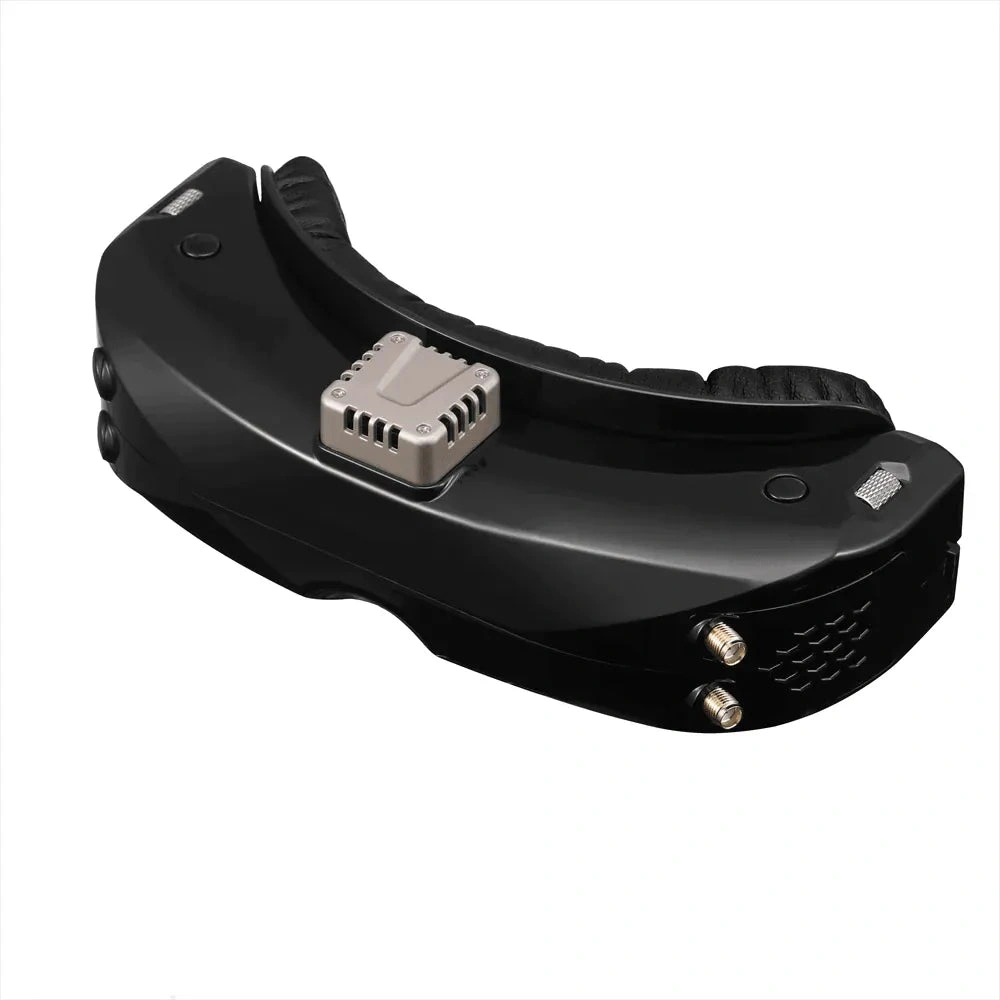

New FPV goggles SKY04O, same as SKY04X, the main difference between 04X and 04O is the Resolution and FOV(Diagonal).
The SKYZONE 5.8GHz 48CH SKY04O FPV Goggle provides an exceptional experience with an OLED screen and 1024*768 resolution, which Can be used to watch 3D movies. Best drone FPV goggles. Packed with features like adjustable focus -6~+2 for near- and far-sighted individuals, an interpupillary distance of 58~71mm, a 5.8GHz 48CH receiver, and side-by-side half 3D function, these goggles can handle whatever you throw at them. USB 5V supply and DC 6.5-25.2V power consumption provide reliable power output, while the H264, 60fps, MOV 6Mbps DVR, and head tracker provide maximum accuracy. 185*75*67mm dimension and 262g weight make them an easy on-the-go companion.

Features:
1. 1024*768 OLED screen, high resolution, vivid color, high contrast ration
2. 60FPS DVR Steadyview receiver, better reception
3. 38° large field of view
4. -6~+2 focus adjustment, for long-sighted and near-sighted people
5. Support 4:3/16:9 ratio
6. 4 Preset screen settings and 3 customized settings for diverse situations.
7. With module bay, have more capability to upgrade.

Specification:
Model: SKY04O
Screen: OLED
Resolution: 1024*768
FOV(Diagonal): 38°
Aspect Ratio: 4:3/16:9
Focus: -6~+2 adjustable (Suitable for long-sighted and near-sighted people.)
Interpupillary distance (IPD): 58~71mm
Receiver : 5.8Ghz 48CH Receiver
3D Function: Side By Side half
Language: 10 Language
Power Supply: DC 6.5-25.2V/USB 5V
Power Consumption: 720mA @ 12V
DVR : H264, 60fps,MOV 6Mbps, SD Card support up to 128Gb
Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
Antenna Connector: SMA
Dimentions : 185*75*67mm
Weight: 262g

Package Included:
1x SKY04O Goggles
1x Receiver Module
2x Faceplate(wide and narrow)
2x Sponge with band
1x Zipper case
1x Power cable
1x Headtracker cable
2x 5.8Gb 2dD antennas
1x Video/Audio Cable
1x USB-C Cable
1x User Manual
