Crux3: Tiny Terror Unleashed! ELRS, Peanut, GO2 Ready! Fly Free, Capture All.
Alright, listen up, folks! You're staring at pure unadulterated awesome, the kind that makes your life better just by being near it. This ain't your grandma's whatever-it-is, this is the future, the now, the must-have that's gonna make your friends jealous and your enemies... well, they'll probably want one too. Get ready to experience something truly special. Don't just buy it, *own* it. You dig?

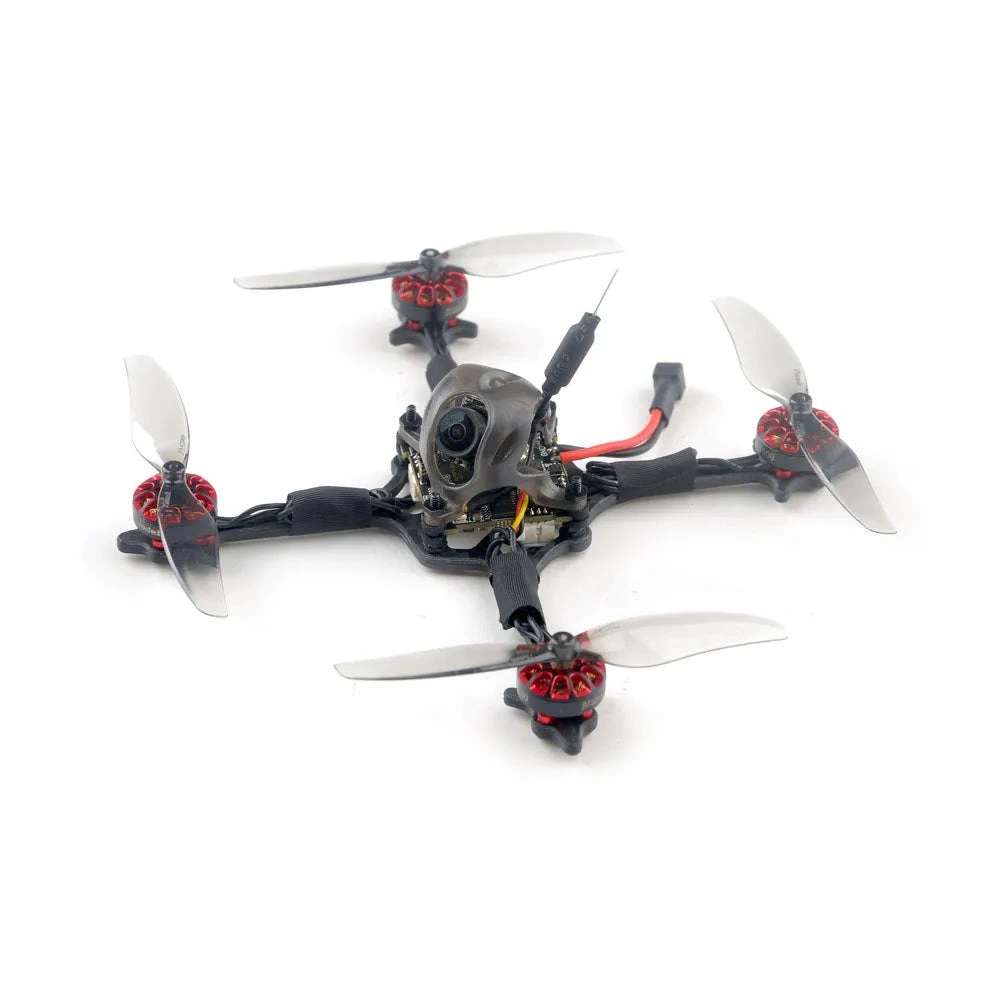

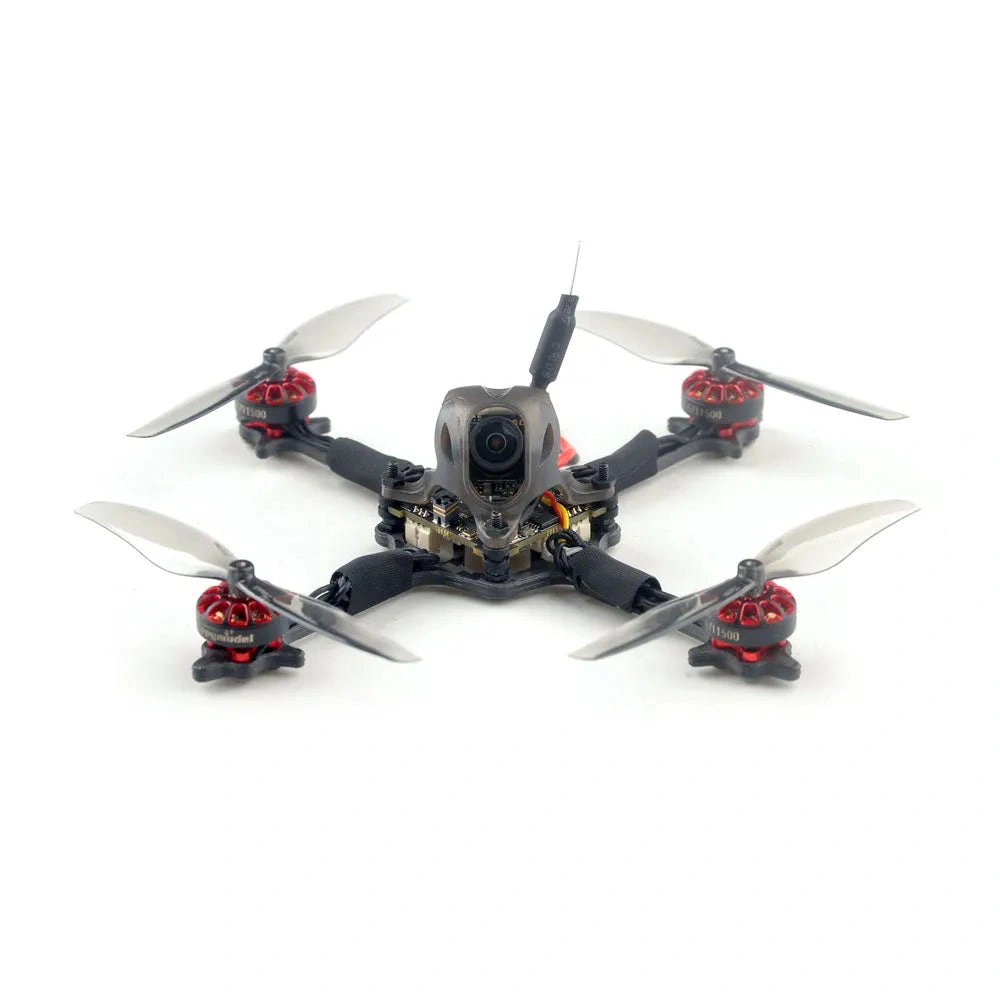

Happymodel Crux3 1S ELRS 3inch toothpick FPV Racer Drone
Note: The Caddx peanut camera is not included, you can buy it HERE
Features:
40gram 1s brushless Toothpick drone
AIO Flight controller with ELRS Receiver and 5.8G VTX
CADDX ANT Camera
New 1202.5 KV11500 brushless motor
Recommend to use 1s 450mah/650mah/660mah/720mah battery

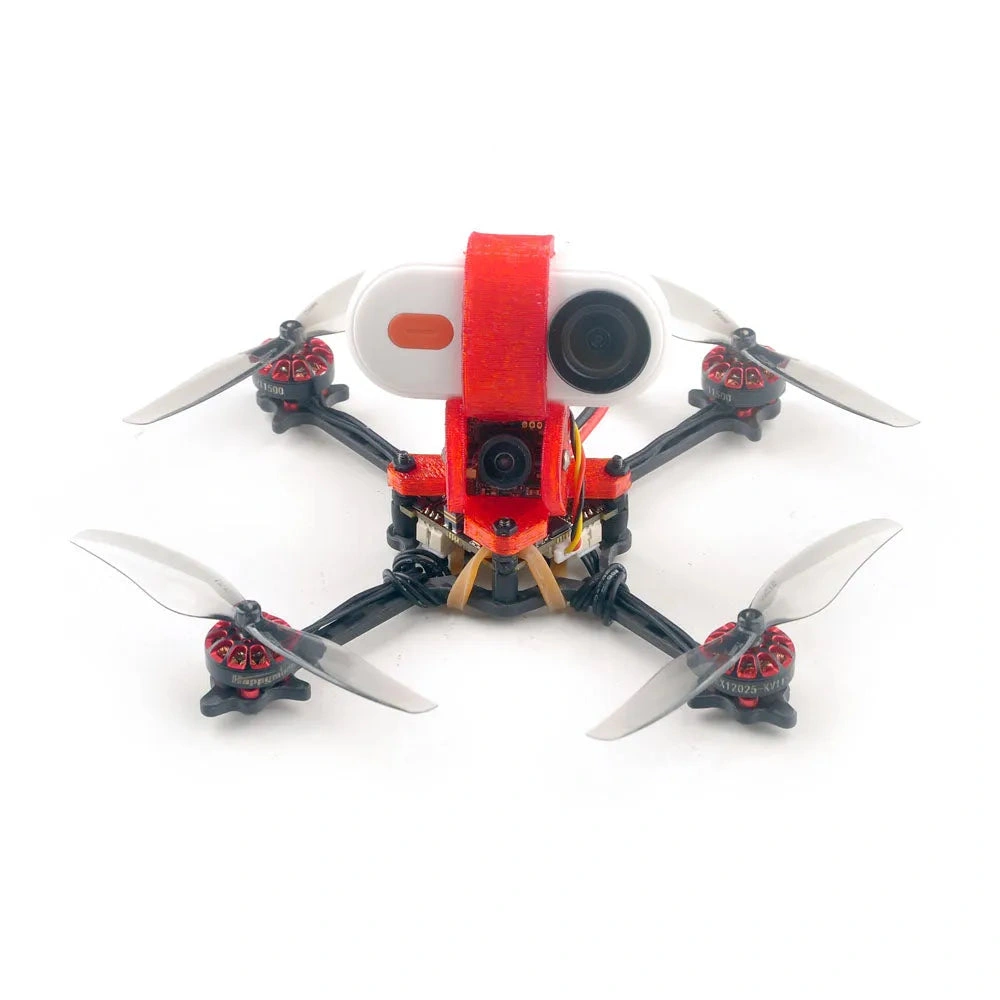

Compatible with CaddxFPV Peanut and Insta360 GO2

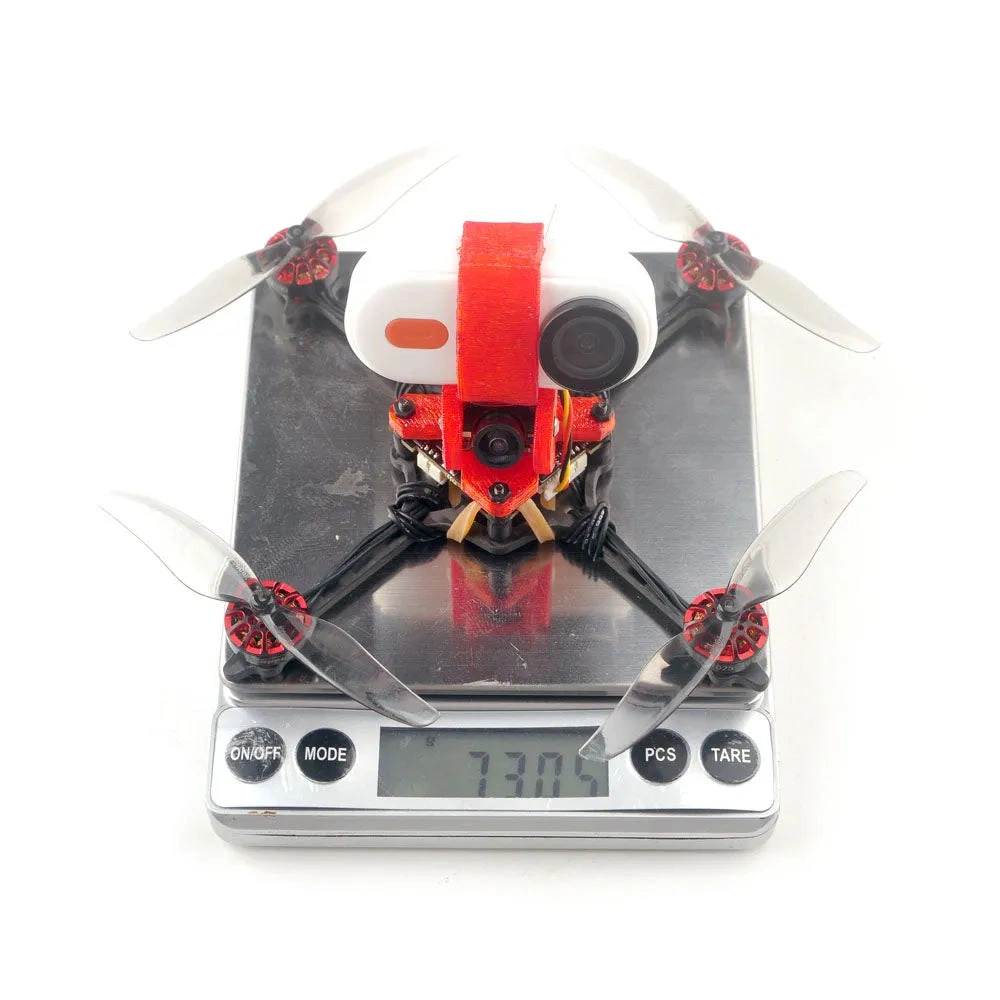

Carrying Caddxfpv peanut Got 4.5 minutes flying time with 1s 650mah battery
Recommended Batteries (Click the picture for the product link):
Specifications：
Brand Name: Happymodel
Item Name: Crux3 1S ELRS
Wheelbase: 115mm
Size: 97mmx97mmx35mm (without propellers)

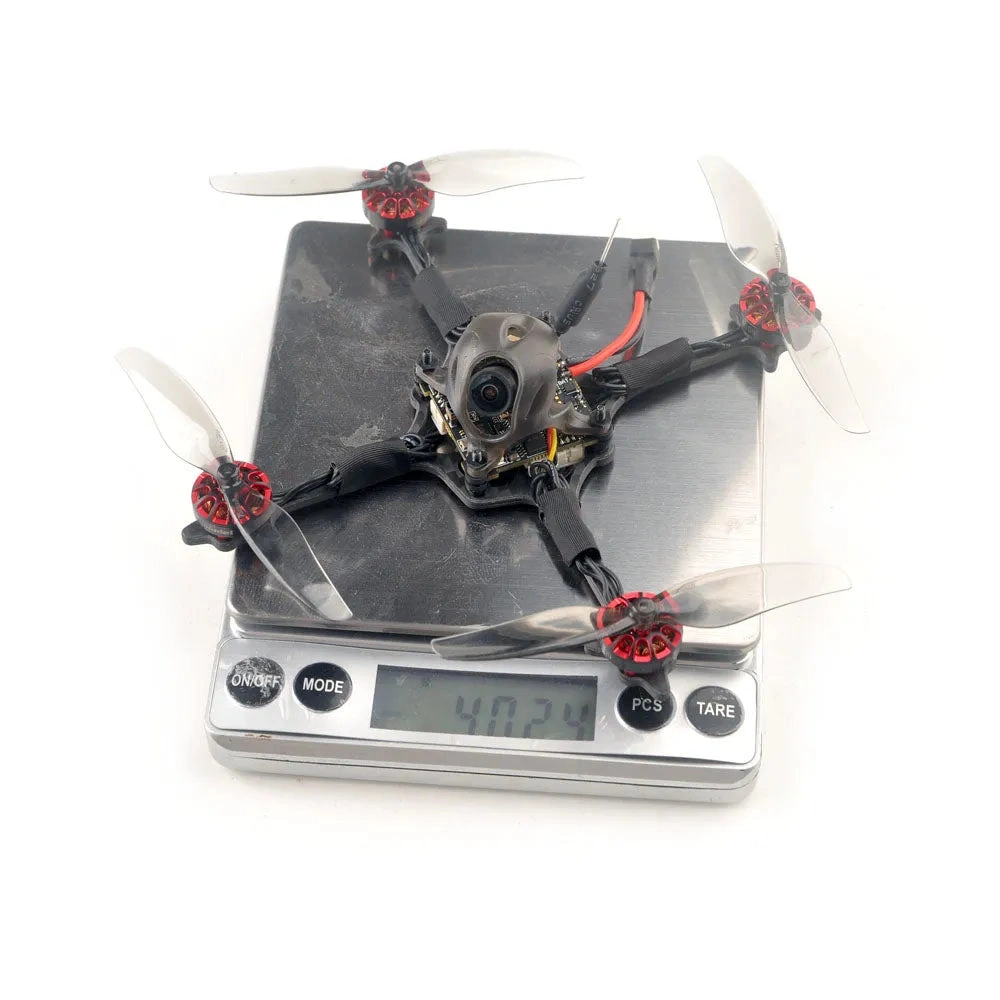

Weight: 40g(without battery)
Motor:
Mode: EX1202.5 KV11500
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:2.5mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ14mm*14.5mm
Weight(g):4.4g
No.of Cells(Lipo):1S
Propellers
Gemfan 75mm
Center Thickness:5mm
Prop Diameter:75mm
Center Hole diameter:1.5mm
Pitch: 0.9in
Flight controller
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI ExpressLRS 2.4GHz receiver
Built-in 5V 1A BEC Flight controller
firmware target: CRAZYBEEF4SX1280
Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT300
Onboard SPI ExpressLRS 2.4GHz Receiver
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol to flight controller: CRSF
Could bind with All ExpressLRS 2.4GHz TX module , ExpressLRS firmware need 1.0.0 or latest
Onboard 5.8g VTX
Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio Ready
Caddx ANT 1200tvl camera
Image Sensor: 1/3' CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: [email protected]
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Work Temperature: -20℃~+60℃
Weight: 2g (N.W.)

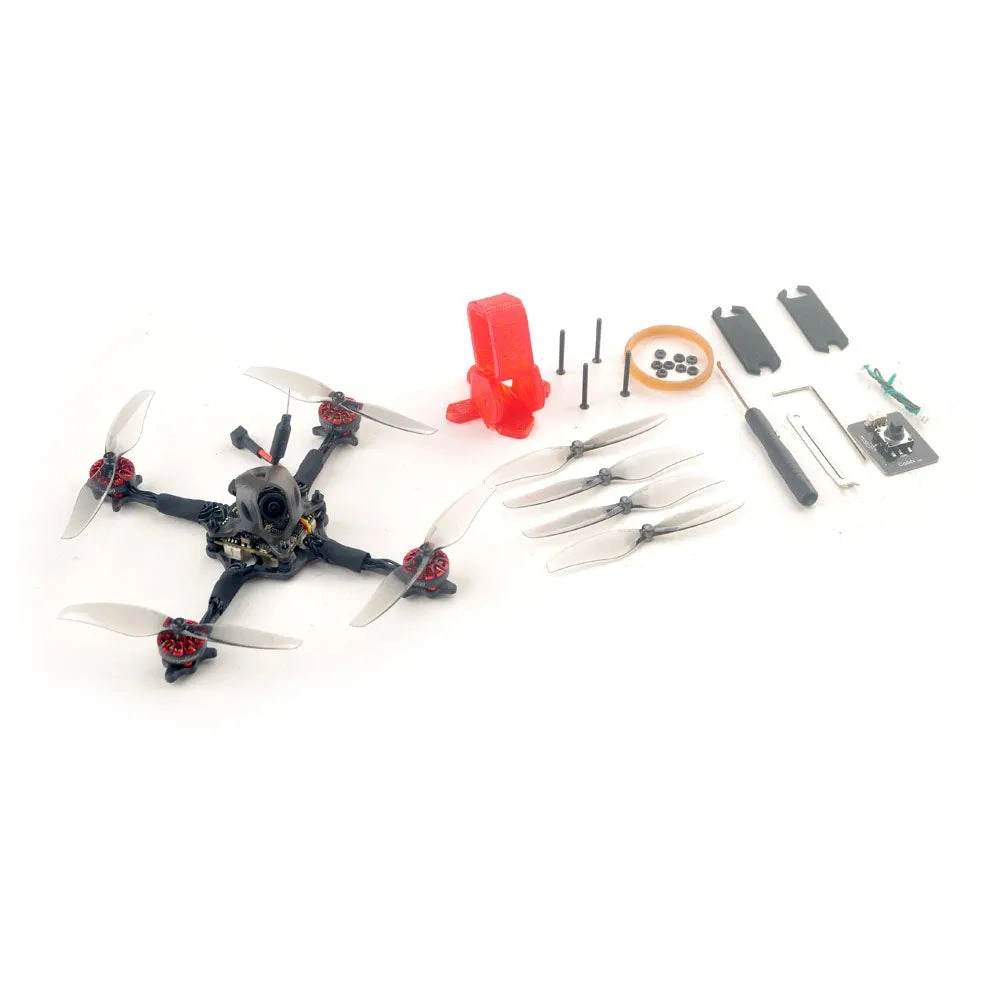

Package included:
1x Crux3 Frame and canopy
1x ELRS F4 2G4 flight controller built-in SPI ExpressLRS 2.4G receiver
4x Happymodel EX1202.5 KV11500 brushless motor
1x Gemfan 75mm bi-blade Propellers(4cw+4ccw)
1x Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera
1x 5.8G 25mw~200mw 40ch vtx (Flight controller built-in)
1x Screw Driver
1x Propeller disassemble tool
1x 3D Printed canopy for Insta360 GO2 and CaddxFPV Peanut
1x Happymodel Handbag
