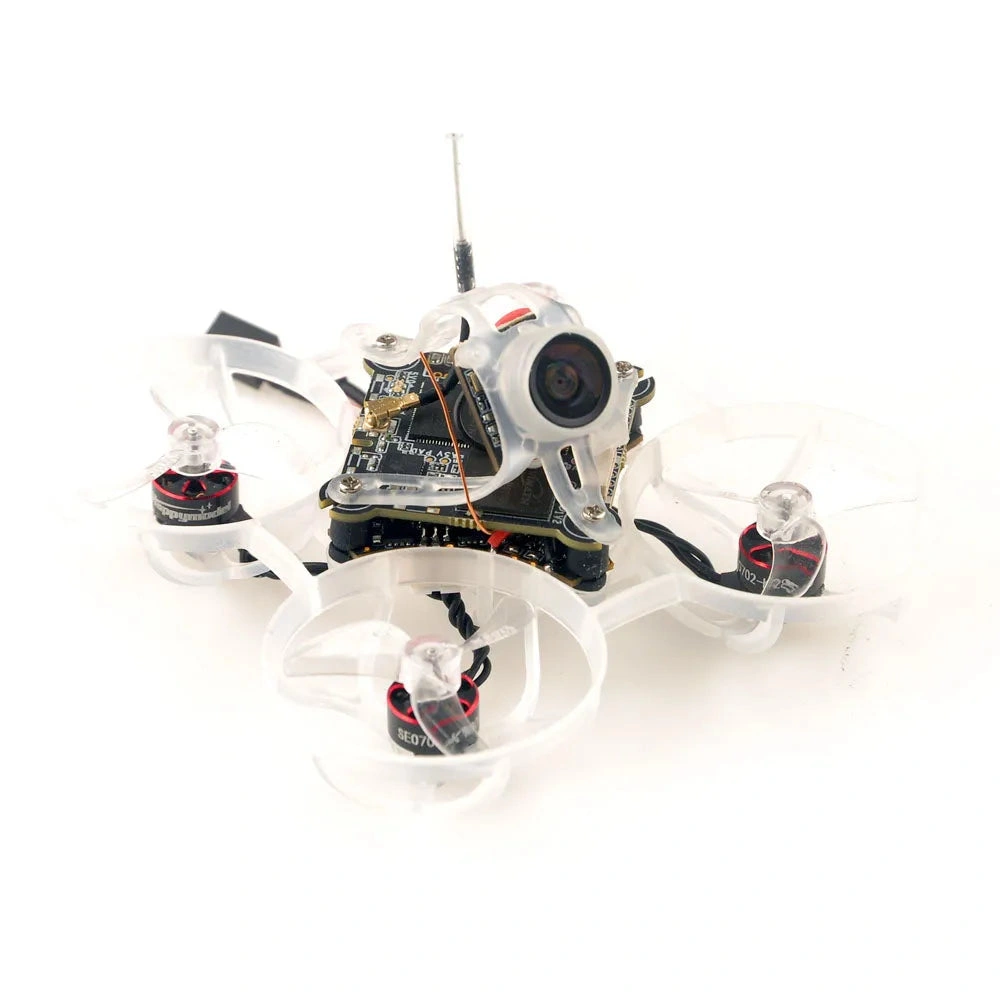

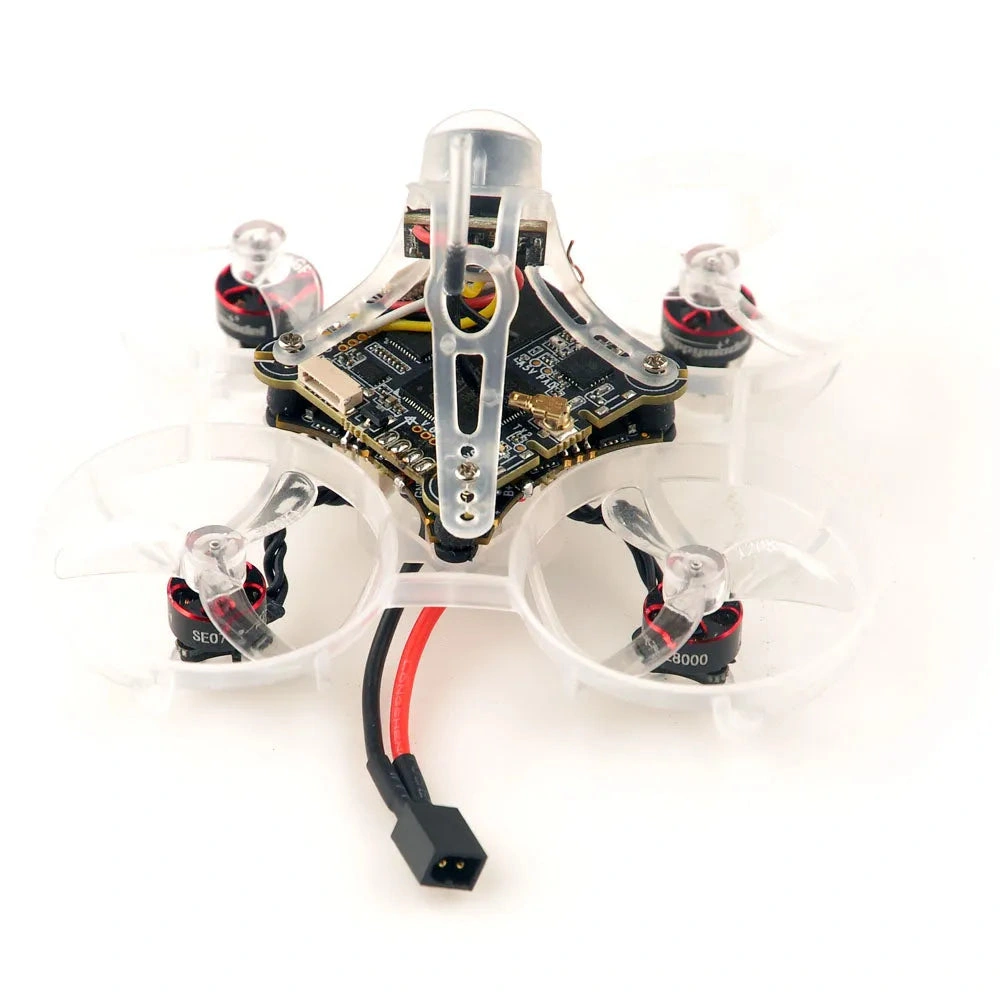

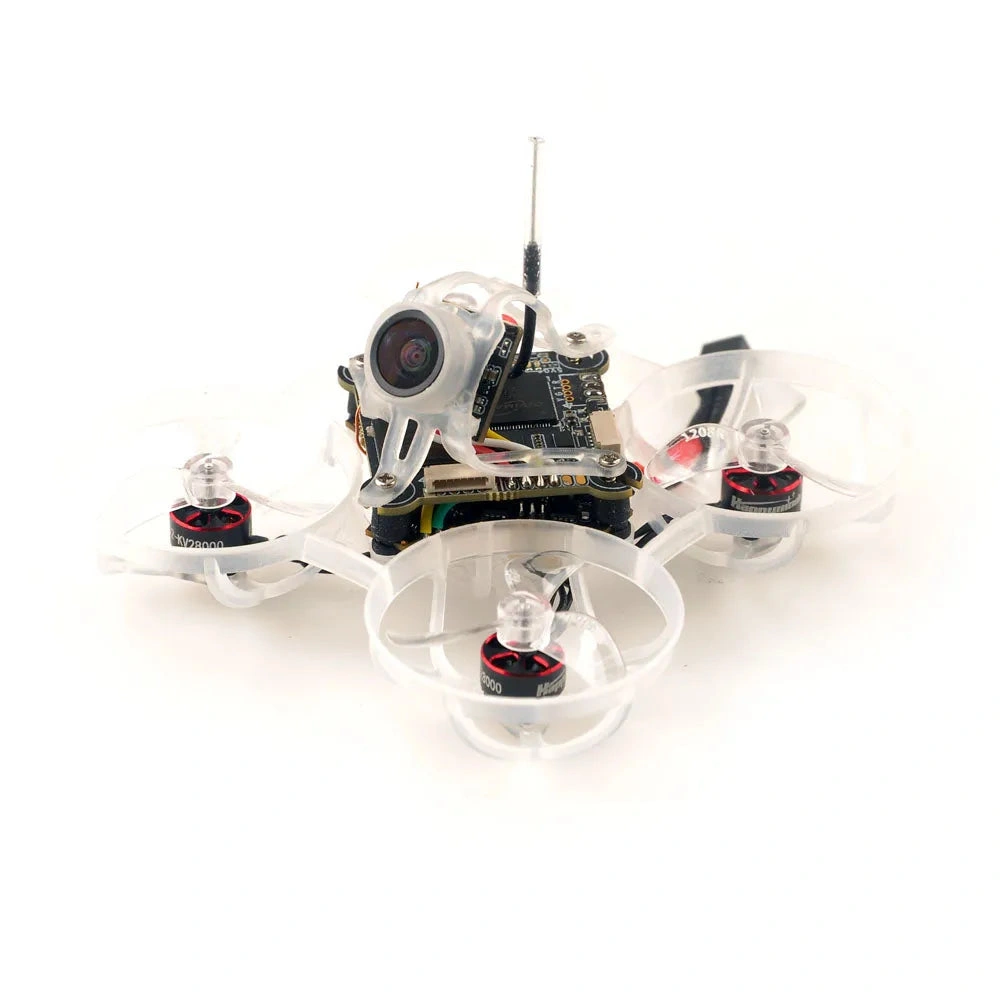

Happymodel Mobula6 ECO 2024 1S 65mm HDZero Ultra Light Micro FPV Whoop Drone
ETA: Around Early April
Features:
AIO Flight controller with Serial ELRS Receiver
Compatible with HDZERO system
Equipment with the lightest brushless motors-SE0702 only 1.49gram
HDZERO NEW ECO VTX and Camera ready
Smooth and powerful
Compatible for 1S Lipo/LIHV
Onboard blackbox read
Specifications:
Brand Name: HAPPYMODEL & HDZERO CO-Brand
Model: Mobula6 ECO 2024
Frame wheelbase: 65mm

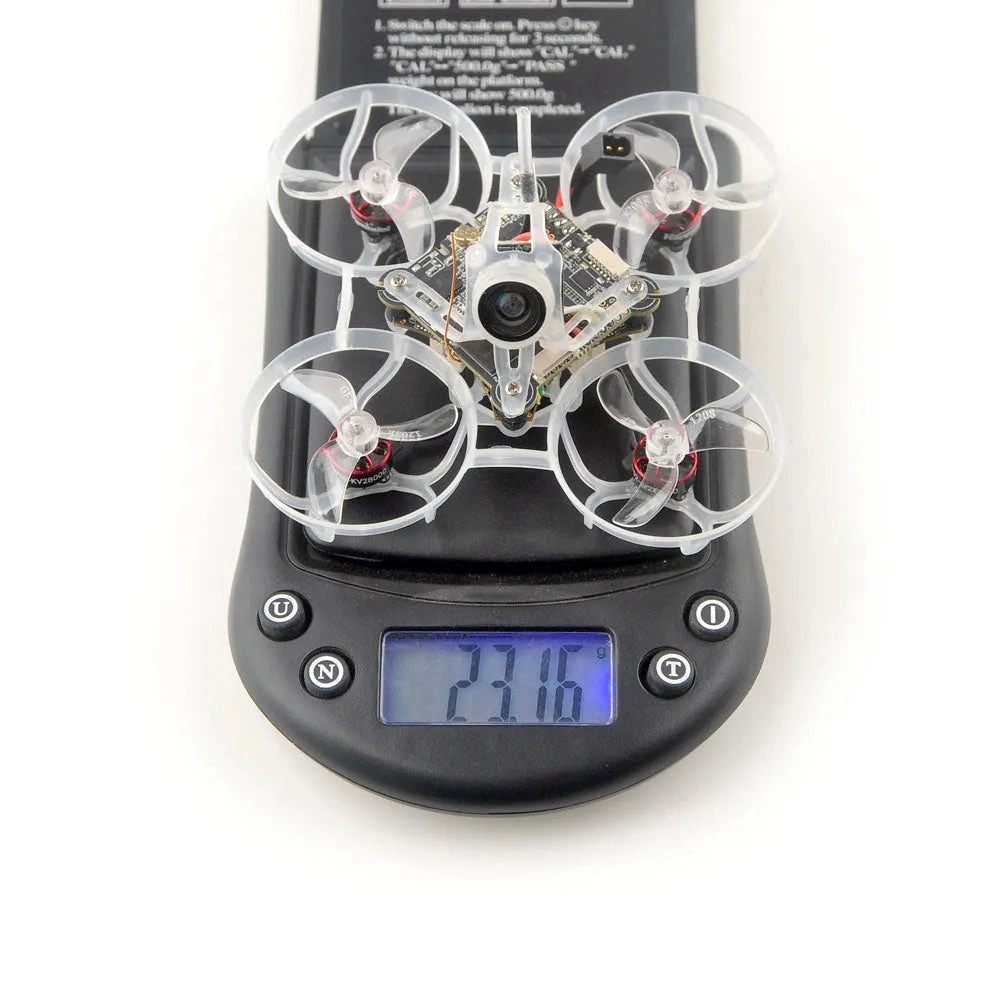

Weight: 23.16 gram without battery
Size: 81mm*81mm*45mm
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: GNB A30
Motor
Mode: SE0702 KV28000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.49g
No.of Cells(Lipo):1S only
Propellers
Materials: PC
Inch: 31mm
Pitch: 0.8 in
Weight: 0.21g
Mount hole diameter: 1mm
Flight controller
SuperX HD ELRS
Betaflight 4.4.2 firmware ready
Firmware target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read
Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update
Bluejay ESC Firmware ready
Built-in 5V 1A BEC
Built-in voltage detection
No betaflight analog osd chip
Onboard 4in1 ESC
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz
Default protocol: DSHOT300
Onboard Serial ExpressLRS 2.4GHz Receiver
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1
The same hardware with Happymodel EP1 receiver
Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through
HDZERO ECO VTX
Composite HD Video interface
1S-3S Input
25mW/200mW RF output
25.5×25.2 M2 soft mounting
Antenna Retention
32.4×32.5mm (29x29mm inner)
4.5grames/4mm Thickness (w/o shielding)
HDZERO ECO Camera
Image Sensor : 1/3”
Resolution: 720@60fps 4:3
LENS: FOV D:150° H:120° V:98°
Shutter: Rolling Shutter
Net Weight: 1.6g (With Cable)
Dimensions: L14mm*W14mm*H13mm
Package Included:
1x Mobula6 2024 1S 65mm whoop Drone Frame +Canopy
1x SuperX HD ELRS AIO flight controller
1x HDZero ECO VTX
1x HDZero ECO Camera
4x SE0702 KV28000 brushless motor
1x Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw)
1x Spare Canopy
1x Screw Driver
1x Propeller disassemble tool
